Hydraulic Ram Range

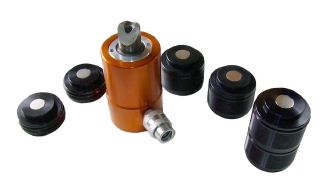

VIKING 4 MAGNETIC

The VIKING-4 is a tool, which operates on the inner part of the rim. It locates on the chassis of the vehicle and pushes the ring of the rim, which removes the tyre from its seat. It can be used on 25” to 51” 3 and 5 piece rims on earth-moving machines. It comes complete with 5 extensions. One 100 mm, two 50 mm and two 25 mm.

VIKING 4 MAGNETIC

Characteristics

Weight: 3,0 kg

Dimensions: Ø9x17 cm

Stem stroke: 4 cm

Bead breaking power: 19.800 kg

Max. dimensions of tyres: 51"

Max. operation pressure: 700 bar
